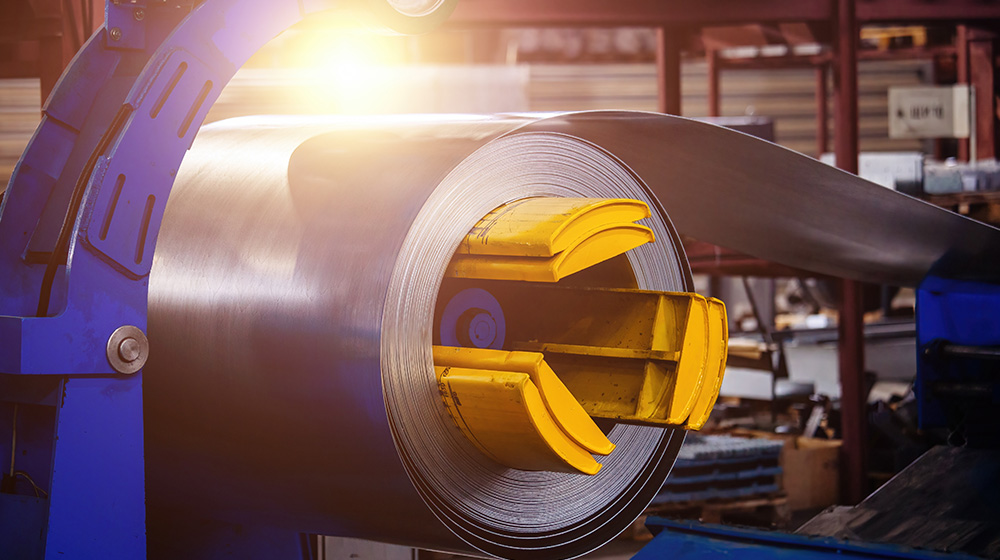

This type of steel is obtained by applying heat treatment to cold-rolled and annealed coil or strip material. It is commonly referred to as "tempered steel strip" in practice.
Previously known as C45 Material under DIN/German standards, this steel was redefined as CK45 Material under the European Norm while maintaining the same technical specifications.
CK45 Grade Tempered Spring Steel is produced in cold-rolled form according to the 10132-3 standard and hardened in our heat treatment facilities to achieve 360-480 HV hardness or 36-47 HRC levels.
Our tempered steel group is available in two different surface types:
CK45 Grade Tempered Spring Steel is widely used in many fields, particularly in the automotive and white goods industries.
| EN 10132 | UNI | DIN | AFNOR | BS | SAE/AISI |
|---|---|---|---|---|---|
| C45E | C45 | CK45 | XC45 | CS45 | 1045 |
| C | Mn | Si | P max. | S max. | Cr max. | Ni max. | Mo max. | V |
|---|---|---|---|---|---|---|---|---|
| 0,42-0,50 | 0,50-0,80 | 0,40 | 0,035 | 0,035 | 0,40 | 0,40 | 0,10 | -- |
| Rm max N/mm² | HV max. | A% (Lo80 min) |
|---|---|---|
| 1600 | 480 | 18 |
